Características Principais

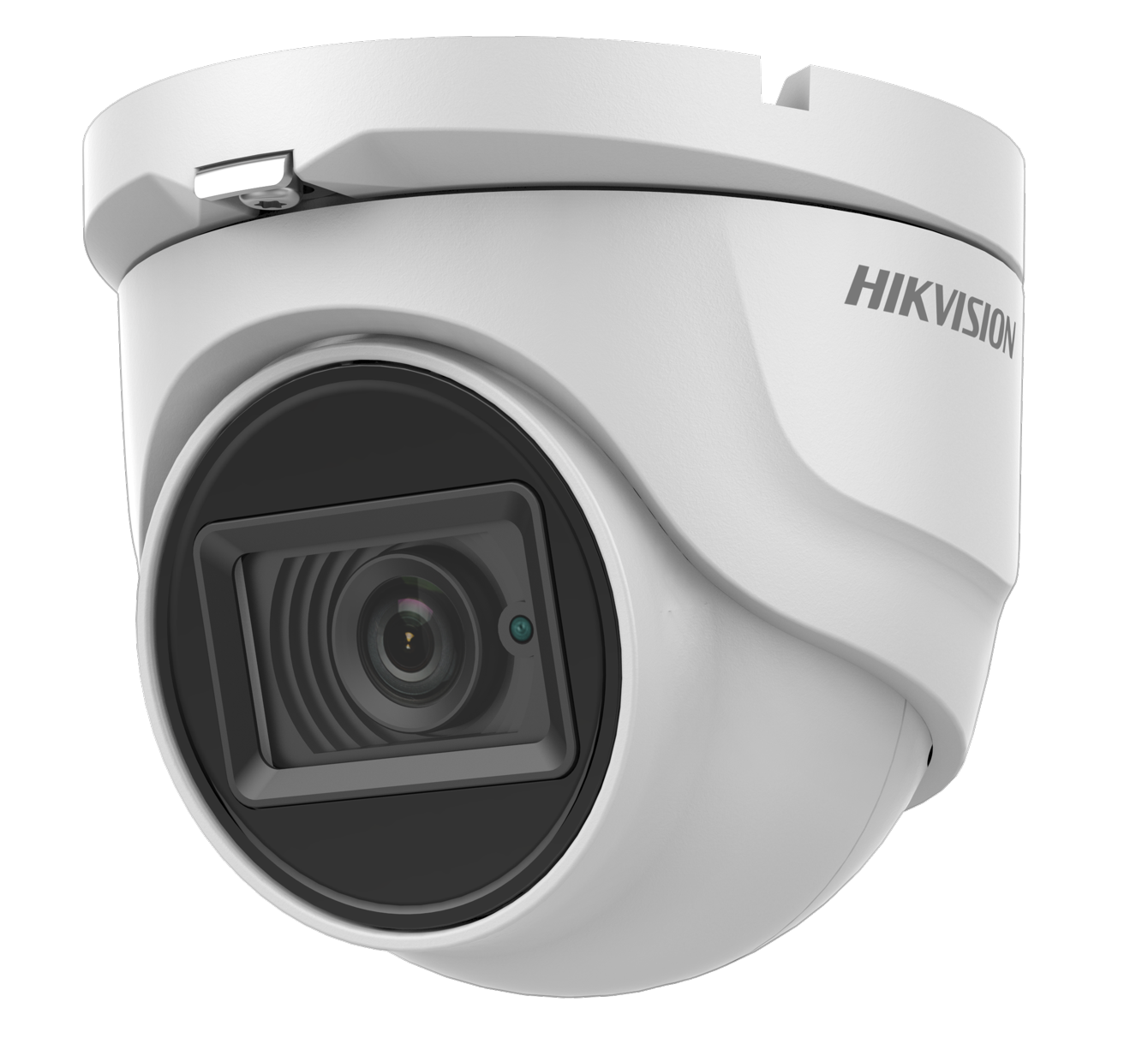

Câmera torre 8 MP
EXIR 2.0: tecnologia infravermelha avançada com distância infravermelha de 30 m
4 em 1 (4 sinais selecionáveis TVI / AHD / CVI / CVBS)
Especificações
Câmera
Image Sensor8.29 megapixel progressive scan CMOS
Max. Resolution3840 (H) × 2160 (V)
Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8mm, 3.6mm, 6mm fixed lens
Focal Length & FOV102.2° (2.8mm), 79° (3.6mm), 50.8° (6mm)
Lens MountM16
Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR/ 105 dB
Image EnhancementBLC
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionØ 70mm × 159.8mm (Ø 2.76" × 6.29" )
PesoApprox. 180 g (0.40 lb.)
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish
Power Supply12V DC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 5.3 W
IR RangeUp to 30 m
